ELECTRONICS

BATTERY: 48V, 17.5 Ah (840 Wh) with Lithium NCA 18650 Samsung 35E cells, rated for 800 charge cycles

HUB MOTOR: 750W Bafang brushless geared rear hub motor - 80 Nm torque, 5:1 planetary gear reduction

CONTROLLER: 48V, 25amp

PEDAL ASSIST: Configurable 5-9 level pedal assist with sealed 12 magnet cadence sensor

DISPLAY: C900E-USB 3.8” color LCD Display w/ USB Port

CHARGER: 48V, 3 Amp WT intellicharger, 110v

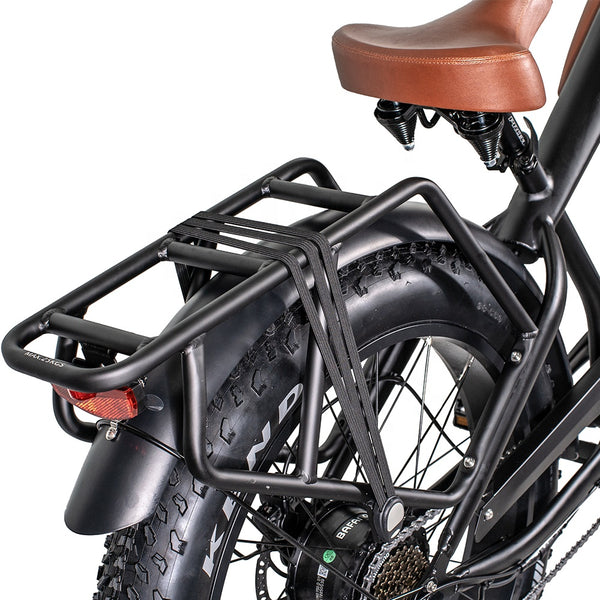

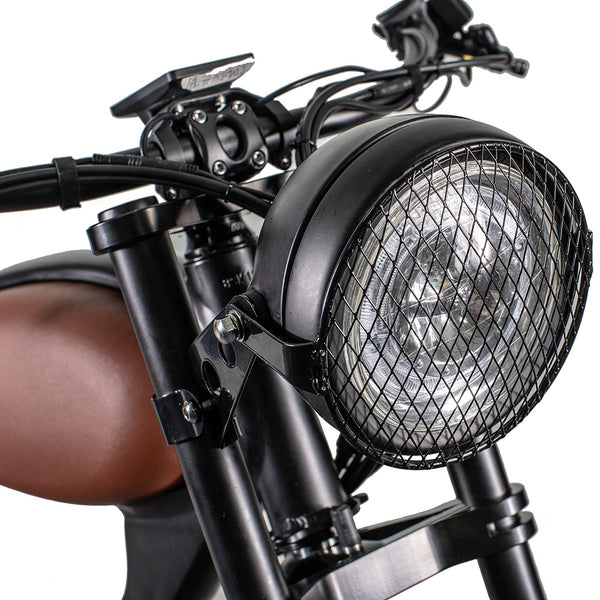

LIGHTS/REFLECTORS:Front: 6.25" LED Headlight; Hi/Lo Beam 300/400 LumensRear: Reflector

RANGE: 35-45+ miles per charge (estimate)

THROTTLE: Right side twist throttle

WIRING: Internally run, water resistant connectors and wiring harness

BIKE COMPONENTS

BATTERY MOUNT: Concealed top tube mount

BRAKE CALIPERS: Tektro HD-E350 Hydraulic Disc

BRAKE LEVERS: Aluminum alloy 4 finger grip levers with motor cutoff switch

BRAKE PAD MATERIAL: Metallic

BRAKE ROTORS: Tektro 180 mm front and rear

CHAIN: KMC Z7

CRANK SET: 44T, 170 mm ProWheel Pioneer forged alloy, dual-sided aluminum bashguard

DERAILLEUR: 7-speed Shimano Altus

FRAME: 6061 Aircraft Aluminum Fat Hydroformed Tube, with CNC machined top tube

FREEWHEEL: SunRace 13-28T stainless steel, 7 speed

FRONT END: Rigid Steel, Triple-Tree, Stretched Style, 135mm Hub Spacing, 10mm Threaded Axle with Nuts

GRIPS: Flat, Padded, Faux Leather with Stitching - Black or Brown

HANDLEBAR: alloy cruiser style handlebars, 25.4mm, 28" wide, 5" tall; optional Steel, 25.4mm, 13.5" tall, 32.5” wide ape hangers

HEADSET: Threadless Internal Cups, Straight 1-1/8”

KICKSTAND: Side-mounted, adjustable length

PEDALS: VP-565 Alloy Platform, Black

RIMS: Alloy, Double Wall, 26” X 80mm Outer Width, 36 Hole, Black

SADDLE: CHIFA, Oversized Comfort, Faux Leather, Springs

SEAT POST: Alloy, 30.4mm width, 300mm length

SHIFTER DETAILS: Shimano SIS Index Trigger Thumb Shifter on Right, 7 speed

SPOKES: Stainless Steel, 13 Gauge Front, 12 Gauge Rear, Black with Silver Nipples

STEM: Double Crown Direct Mount, Alloy, Turn Stopper Pin

TIRES: 26” x 4.0”, 5-20PSI, Black Street Tire w/Sand Option

TIRE TUBE: Schrader Valve‍

MEASUREMENTS

TOTAL WEIGHT: 76 lbs

BATTERY WEIGHT: 8.2lbs

MOTOR WEIGHT: 9.5 lbs (4.3 kg)

FRAME SIZE: 19.75 in (50.16 cm)

STANCE: 1.75” Seat Tube, 25.25” Reach, 27.25” Stand Over Height, 34” Minimum Saddle Height, 30.25” Width, 83” Length

*Please check your state and local laws as they vary. This is not a warranty for a specific use or purpose.

DOMESTIC SHIPPING

WE ARE CURRENTLY ONLY SHIPPING WITHIN CANADA VIA FEDEX GROUND OR UPS

IN STOCK ORDERS ARE SHIPPING IN 3-5 DAYS AT THIS TIME.

IF YOU ARE LUCKY ENOUGH TO ORDER AN IN-STOCK PRODUCT, ORDERS TYPICALLY SHIP WITHIN 3-5 BUSINESS DAYS, BUT MAY INCREASE TO 10-14 DAYS DURING PEAK SEASON.  CUSTOM ORDERS PLEASE ADD 7-10 BUSINESS DAYS. A SHIPPING CONFIRMATION EMAIL WILL BE SENT TO THE EMAIL ADDRESS ATTACHED TO THE ORDER ONCE THE ORDER HAS SHIPPED.  PLEASE CHECK OUR DELIVERY STATUS PAGE FOR ANY KNOWN DELAYS.

AFTER YOUR ORDER HAS SHIPPED, DELIVERY TIME FRAMES CAN RANGE BETWEEN 5 AND 14 DAYS.

AS WE SHIP UPS OR FEDEX WE DO NOT SHIP TO PO BOXES OR APO.

ORDERS CONTAINING DISCOUNTED MERCHANDISE MAY TAKE AN ADDITIONAL 48 HOURS TO PROCESS.

ANY CHANGES THAT THE CUSTOMER MAKES REGARDING SHIPPING ONCE THE ITEM IS SHIPPED, INCLUDING BUT NOT LIMITED TO CHANGING THE ADDRESS, PUTTING AN ORDER ON HOLD, OR UPDATING SHIPPING SETTINGS/PREFERENCES SURRENDER THE OPTION FOR REPLACEMENT ITEMS AND/OR REFUNDS IF ANY ISSUES OCCUR.

PLEASE NOTE WE ARE NOT RESPONSIBLE FOR ANY LOST, STOLEN, OR DAMAGED ITEMS DUE TO ANY PARCEL SERVICE FAULT.

YOU WILL BE RESPONSIBLE FOR PAYING FOR YOUR OWN SHIPPING COSTS FOR RETURNING YOUR ITEM. SHIPPING COSTS ARE NON-REFUNDABLE. IF YOU ARE SHIPPING AN ITEM OVER $75, YOU SHOULD CONSIDER USING A TRACKABLE SHIPPING SERVICE OR PURCHASING SHIPPING INSURANCE. WE DON’T GUARANTEE THAT WE WILL RECEIVE YOUR RETURNED ITEM.

FOR ANY THIRD-PARTY SHIPPING, BAD ASS CANNOT PROVIDE ANY ADDITIONAL SHIPPING INFORMATION OR DOCUMENTATION.

*WHERE FREE SHIPPING IS OFFERED, RESIDENTS OF AK, HI, AND CANADA DO NOT QUALIFY, PALLETIZED FREIGHT ORDERS ARE SUBJECT TO FEES. ORDERS INCLUDING ONLY ACCESSORIES AND/OR PARTS WILL STILL HAVE SHIPPING FEES APPLIED.

WE ARE NOT CURRENTLY SHIPPING ANY INTERNATIONAL ORDERS. STAY TUNED FOR UPDATES ON THIS. YOU MAY ARRANGE A FREIGHT FORWARDER AT YOUR OWN RISK AND EXPENSE, BUT PLEASE CAREFULLY READ OUR WARRANTY AND RETURN POLICIES AS THEY PERTAIN TO THIRD-PARTY SHIPPING AND FREIGHT FORWARDING.

RETURNS

PURCHASED BUT NOT SHIPPED

THERE ARE CERTAIN FEES WE INCUR AS PART OF AN ORDER THAT WE CANNOT RECOUP. ALL ORDERS ARE SUBJECT TO A 3% CANCELLATION FEE. UNSHIPPED ORDERS CANCELLED AFTER 24 HOURS ARE SUBJECT TO A RESTOCK FEE OF 10%.

PURCHASED AND SHIPPED

EBIKE ORDERS:

NO RETURNS AFTER 7 CALENDAR DAYS OF RECEIVING

TO BE ELIGIBLE FOR A RETURN, THE BIKE MUST BE UNOPENED, UNUSED, FREE FROM DIRT, DUST, OR ANY FRAGRANCES, AND IN THE SAME PACKAGING AND CONDITION THAT YOU RECEIVED IT

BOX MUST BE SEALED AND UNOPENED

UPS/ FEDEX DELIVERED BIKES - CUSTOMER PAYS $250 SHIPPING FEE ( THIS IS WITHHELD FROM REFUND )

15% RESTOCKING FEE (THIS IS WITHHELD FROM REFUND)

NO RETURNS ON BIKES SHIPPED VIA A FREIGHT FORWARDING SERVICE

NO RETURNS OR REFUNDS ON CUSTOM BIKE ORDERS THAT HAVE ENTERED PRODUCTION.  THIS INCLUDES ALL APE HANGER BIKES.

ACCESSORY/REPLACEMENT PART ORDERS:

NO RETURNS AFTER 30 DAYS OF RECEIVING

TO BE ELIGIBLE FOR A RETURN, THE ITEM MUST BE UNUSED, FREE FROM DIRT, DUST, OR ANY FRAGRANCES, AND IN THE SAME PACKAGING AND CONDITION THAT YOU RECEIVED IT

SUBJECT TO A 10-25% RESTOCKING FEE

CUSTOMER PAYS SHIPPING BOTH WAYS

USED ITEMS:

NO RETURNS, EXCEPT IN EXTREME CASES OF BREAKAGE / MALFUNCTION

NON-RETURNABLE ITEMS:

 ALL MERCH (CLOTHING, HATS, ETC)

HELMETS

BATTERIES

SPECIAL ORDERS

SALE ITEMS

GIFT CARDS

GIFTED ORDERS

BEFORE A RETURN IS SENT, THE CUSTOMER MUST HAVE WRITTEN APPROVAL OF SAID RETURN FROM BAD ASS. IF A CUSTOMER SENDS A RETURN WITHOUT THE WRITTEN CONSENT OF BAD ASS, A REFUND WILL NOT BE ISSUED AND THE CUSTOMER WILL HAVE TO PAY SHIPPING TO GET THE ITEM RETURNED, OR, SACRIFICE THE ITEM.

IF YOUR APPROVED RETURN PASSES OUR INSPECTION, YOU MAY RECEIVE AN EXCHANGE, STORE CREDIT, OR A REFUND. RETURN ADDRESS AND RMA NUMBER WILL BE GIVEN UPON APPROVAL OF RETURN REQUEST.

PLEASE GIVE US A HEADS UP AFTER YOU SEND YOUR RETURN BY EMAILING SUPPORT@BADASSBIKE.CA. IF POSSIBLE, PLEASE PROVIDE A TRACKING NUMBER.

IF NON-RETURNABLE ITEMS ARE RETURNED WITHOUT AUTHORIZATION FROM OUR CUSTOMER EXPERIENCE TEAM, THEY WILL BE RETURNED TO THE CUSTOMER IMMEDIATELY AND CUSTOMER WILL BE NOTIFIED. RESTOCKING FEES MAY APPLY TO UNAUTHORIZED RETURNS.

1750mm x 340mm x 800mm & 35kg

69" x 13.5" x 32" & 76 lbs

After 100km get your bike professionally serviced at a local bike shop specializing eBikes to ensure everything is seated in properly.
If you currently maintain your own bicycle or e-bike, then most maintenance will be second nature. the most common maintenance items will be:

Brake pad inspection and change

Tire pressure maintenance

Tires / tubes inspection and changes

Spoke inspection and tightening

Brake alignment/caliper position adjustment

Bent rotor replacement

Chain inspection and replacement

Headset adjustment

Battery replacement for led tail light

Hand grip replacement

Derailleur adjustment

Electrical system maintenance should be performed by a reputable shop or sent to BAD ASS directly for replacement.
